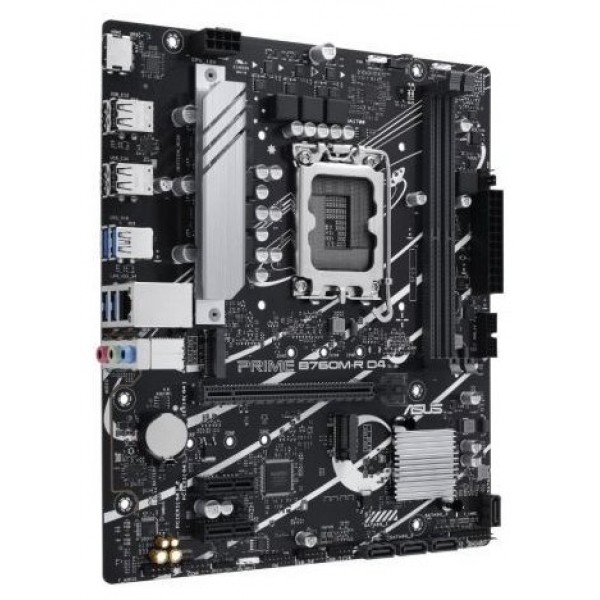

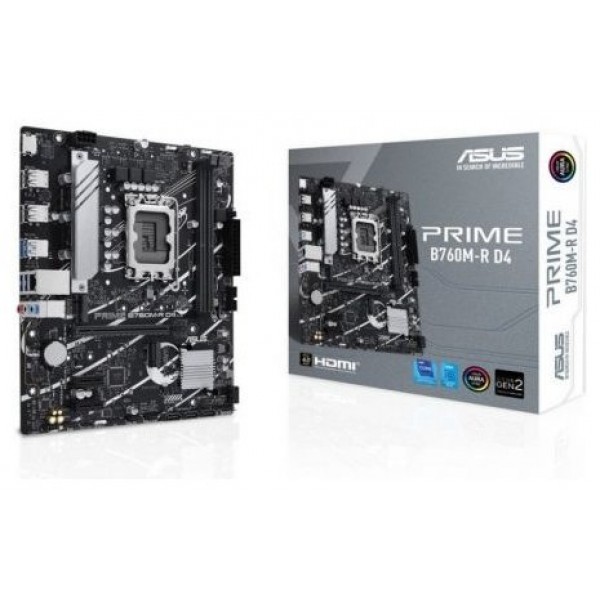

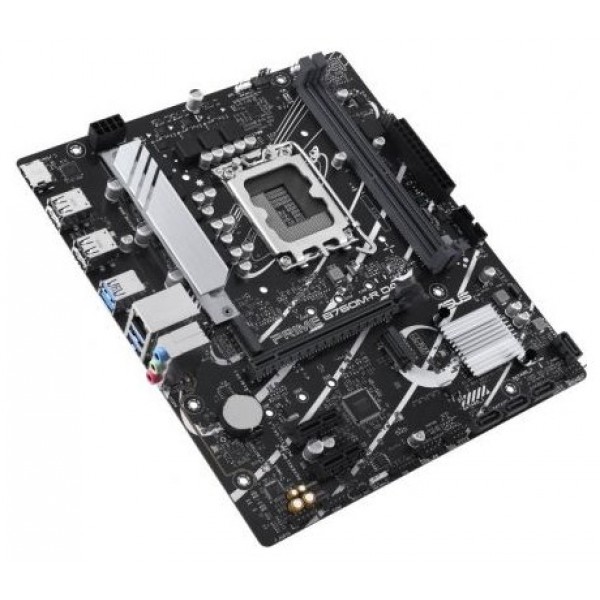

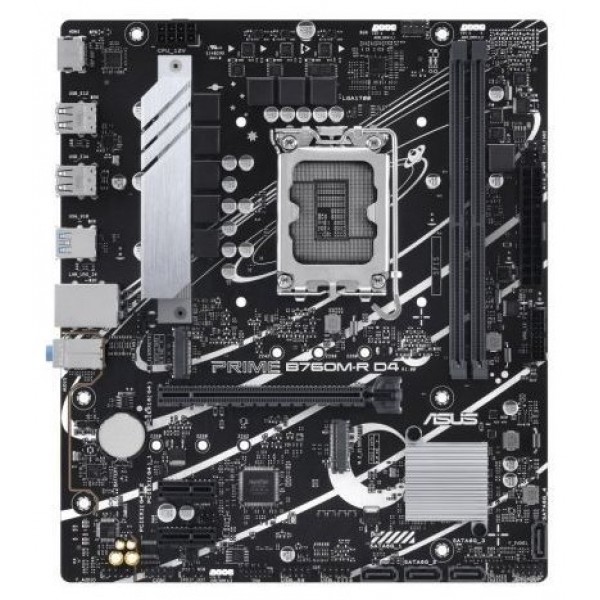

Placa Base Asus PRIME B760M-R D4 Socket 1700/ Micro ATX

Zócalo Intel® LGA 1700: listo para procesadores Intel® de 14.ª , 13.ª y 12.ª generación. Conectividad ultrarrápida: PCIe 4.0, dos ranuras PCIe 4.0 M.2, Realtek Ethernet de 2,5 Gb y soporte USB frontal de 5 Gbps. Refrigeración integral: disipador VRM, disipador PCH, cabezales de ventilador híbridos y Fan Xpert 2+. Iluminación RGB Aura Sync: encabezados direccionables Gen 2 integrados para tiras LED RGB, fácilmente sincronizables con hardware compatible con Aura Sync. Cancelación de ruido AI bidireccional : reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias.. Especificaciones:. CPU. . Intel® Socket LGA1700 for Intel® Core™14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**. * Refer to www.asus.com for CPU support list.. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.. . Chipset. . Intel® B760 Chipset. . Memory. . 2 x DIMM slots, Max. 64GB, DDR4. 5333(OC)/5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*. Dual channel memory architecture. Supports Intel® Extreme Memory Profile (XMP) memory module. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.. . Graphics. . 1 x HDMI port**. * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.. ** Supports 4K@60Hz as specified in HDMI 2.1. . . Expansion Slots. . Intel® Core™ Processors (14th & 13th & 12th Gen). 1 x PCIe 4.0 x16 slot. Intel® B760 Chipset. 2 x PCIe 4.0 x1 slots. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.. . Storage. . Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*. Intel® Core™ Processors (14th & 13th & 12th Gen). M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). Intel® B760 Chipset. M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). 4 x SATA 6Gb/s ports. * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.. . Ethernet. . 1 x Realtek 2.5Gb Ethernet. . USB. . Rear USB (Total 8 ports). 4 x USB 5Gbps ports (4 x Type-A). 4 x USB 2.0 ports (4 x Type-A)*. Front USB (Total 6 ports). 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.. . Audio. . Realtek 7.1 Surround Sound High Definition Audio CODEC*. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback. Audio Features. - Audio Shielding. - Premium audio capacitors. - Dedicated audio PCB layers. * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.. . Back Panel I/O Ports. . 4 x USB 5Gbps ports (4 x Type-A). 4 x USB 2.0 ports (4 x Type-A). 1 x HDMITM port. 1 x Realtek 2.5Gb Ethernet port. 3 x Audio jacks. . Internal I/O Connectors. . Fan and Cooling Related. 1 x 4-pin CPU Fan header. 2 x 4-pin Chassis Fan headers. Power Related. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. Storage Related. 2 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. USB. 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. Miscellaneous. 3 x Addressable Gen 2 headers. 1 x Clear CMOS header. 1 x COM Port header. 1 x Front panel audio header (F_AUDIO). 1 x S/PDIF Out header. 1 x Speaker header. 1 x SPI TPM header (14-1pin). 1 x 10-1 pin System Panel header. . BIOS. . 128 Mb Flash ROM, UEFI AMI BIOS. . Manageability. . WOL by PME, PXE. . Form Factor. . micro-ATX Form Factor. 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
