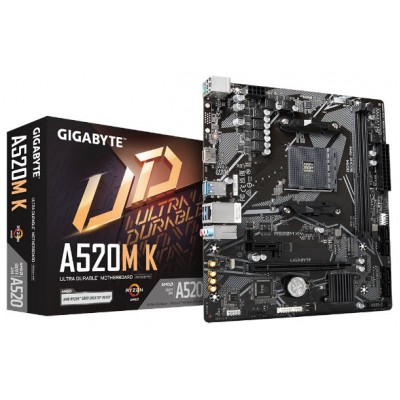

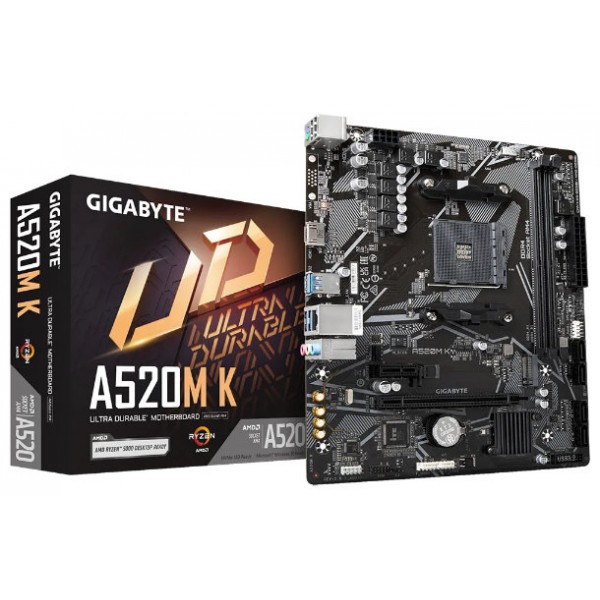

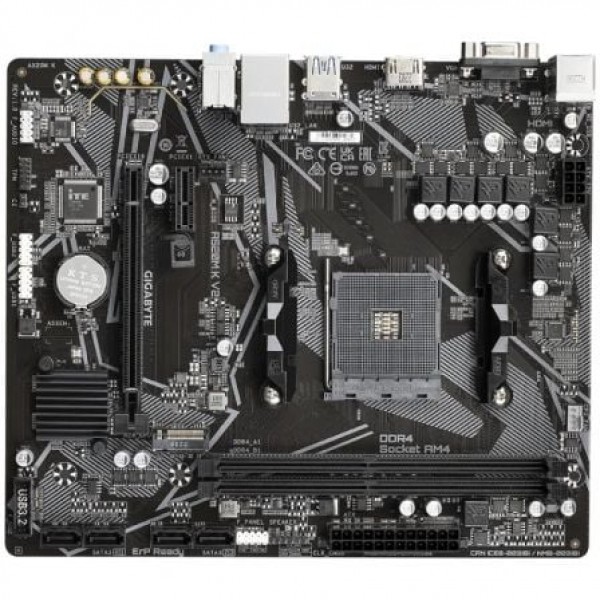

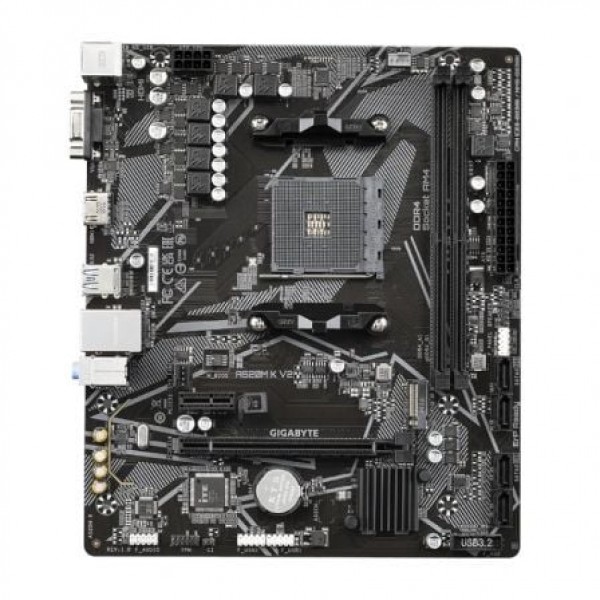

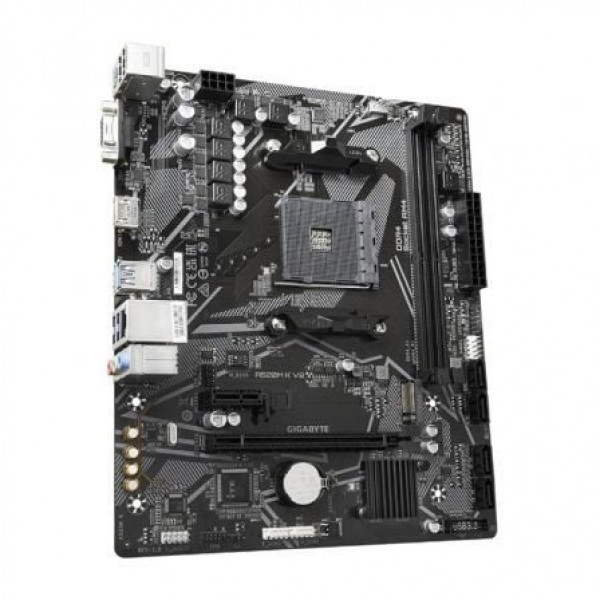

• Gigabyte Placa Base A520M K V2 mATX AM4
AM4/AMD A520/HDMI/ mATX

Especificaciones:. Procesador. . AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors. (Please refer ""CPU Support List"" for more information.). . Chipset. . AMD A520. . Memoria. . 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules. Dual channel memory architecture. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode). Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Support for Extreme Memory Profile (XMP) memory modules. (Please refer ""Memory Support List"" for more information.). . Gráfica Integrada. . Integrated Graphics Processor:. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. * Support for HDMI 2.1 version, HDCP 2.3, and HDR.. Maximum shared memory of 16 GB. . Audio. . Realtek® Audio CODEC. High Definition Audio. 2/4/5.1/7.1-channel. * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.. . LAN. . Realtek® GbE LAN chip (1 Gbps/100 Mbps). . Zócalos de Expansión. . CPU:. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16. Chipset:. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1. . Interfaz de almacenamiento. . CPU:. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support). Chipset:. 4 x SATA 6Gb/s connectors. Support for RAID 0, RAID 1, and RAID 10. . USB. . CPU:. 4 x USB 3.2 Gen 1 ports on the back panel. Chipset:. 2 x USB 3.2 Gen 1 ports available through the internal USB header. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers). . Conectores Internos E/S. . 1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x CPU fan header. 1 x system fan header. 1 x M.2 Socket 3 connector. 4 x SATA 6Gb/s connectors. 1 x front panel header. 1 x front panel audio header. 1 x USB 3.2 Gen 1 header. 2 x USB 2.0/1.1 headers. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only). 1 x speaker header. 1 x Clear CMOS jumper. 1 x chassis intrusion header. . Panel E/S Trasero. . 1 x PS/2 keyboard/mouse port. 1 x HDMI port. 4 x USB 3.2 Gen 1 ports. 2 x USB 2.0/1.1 ports. 1 x RJ-45 port. 3 x audio jacks. . Controlador E/S. . iTE® I/O Controller Chip. . BIOS. . 1 x 128 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. . Formato. . Micro ATX Form Factor; 23.3cm x 19.8cm

  • Chipset: AMD A520
  • Formato: Micro ATX
  • Hdmi: SI
  • Imagen Salida: GRAFICOS EN CPU, HDMI
  • Memoria Maxima: 64
  • Microprocesador Integrado: NO
  • Multi-Grafica: NO
  • N Bancos De Memoria: 2
  • N Conexiones SATA: 4
  • N USB 2.0: 2 Traseros, 4 Internos
  • N USB 3.2 Gen1: 4 Traseros, 2 Internos
  • Pci: 1 PCIe x16 ,1 PCIe x1
  • Raid: SI
  • SATA 6Gb/S: 4
  • Socket: AMD AM4
  • Soporta Optane: NO
  • Tecnologia De Memoria: DDR4
  • Tipo De Raid: 0,1,10
  • USB3.1 Interno: SI


Escriba una opinión

Por favor inicio de sesión o registrarse en opinar

Gigabyte Placa Base A520M K V2 mATX AM4

  • Marca: Gigabyte
  • Código: A520M K V2 1.0
  • Disponibilidad: 30 (24/48h)
  • 76.00€

    Iva incluido
  • Sin IVA: 62.81€
