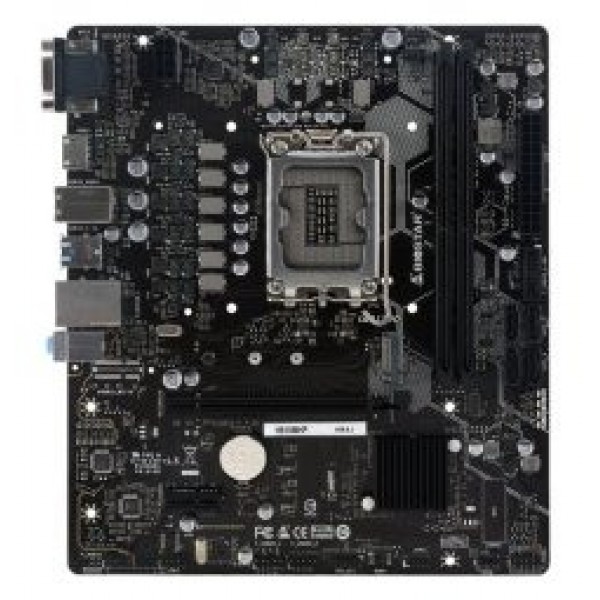

Pb Biostar H610mhp Ver 2.0 Skt 1700 M-atx Gen 12º/13º/14º Hdmi Vga 2ddr4 3200mhz Usb3.2 1m.2 Nvme
Biostar H610MHP. Fabricante de procesador: Intel, Socket de procesador: LGA 1700, Procesador compatible: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... tipos de memoria compatibles: DDR4-SDRAM, Memoria interna máxima: 64 GB, Tipo de ranuras de memoria: DIMM. Interfaces de disco de almacenamiento soportados: M.2, PCI Express 3.0, SATA III. Tipo de interfaz ethernet: Gigabit Ethernet, Controlador LAN: Intel WGI219V. Componente para: PC, Factor de forma: micro ATX, Familia del chipset: Intel
Biostar H610MHP. Fabricante de procesador: Intel, Socket de procesador: LGA 1700, Procesador compatible: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... tipos de memoria compatibles: DDR4-SDRAM, Memoria interna máxima: 64 GB, Tipo de ranuras de memoria: DIMM. Interfaces de disco de almacenamiento soportados: M.2, PCI Express 3.0, SATA III. Tipo de interfaz ethernet: Gigabit Ethernet, Controlador LAN: Intel WGI219V. Componente para: PC, Factor de forma: micro ATX, Familia del chipset: Intel
| Procesador | |
| Fabricante de procesador | Intel |
| Socket de procesador | LGA 1700 |
| Procesador compatible | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Máx.número de procesador SMP | 1 |
| Potencia térmica del procesador (max) | 65 W |
| Memoria | |
| tipos de memoria compatibles | DDR4-SDRAM |
| Número de ranuras de memoria | 2 |
| Tipo de ranuras de memoria | DIMM |
| Canales de memoria | Doble canal |
| Velocidades de reloj de memoria soportadas | 1866,2133,2400,2666,2933,3200 MHz |
| Memoria interna máxima | 64 GB |
| Reguladores del almacenaje | |
| Interfaces de disco de almacenamiento soportados | M.2, PCI Express 3.0, SATA III |
| Gráficos | |
| Soporte para proceso paralelo | No compatible |
| HDCP | Si |
| Versión DirectX | 12.0 |
| Interno I/O | |
| USB 2.0, conectores | 4 |
| Conectores USB 3.2 Gen 1 (3.1 Gen 1) | 2 |
| Número de conectores SATA III | 4 |
| Conector de audio en panel frontal | Si |
| Conector de panel delantero | Si |
| Conector de potencia ATX (24 pines) | Si |
| Conector de ventilador CPU | Si |
| Número de conectores a ventilador de chasis | 2 |
| Conector de energÃa EPS (8-pin) | Si |
| Conector TPM | Si |
| Panel trasero Puertos de I/O (entrada/salida) | |
| Cantidad de puertos USB 2.0 | 4 |
| Cantidad de puertos tipo A USB 3.2 Gen 1 (3.1 Gen 1) | 2 |
| Ethernet LAN (RJ-45) cantidad de puertos | 1 |
| Puerto de ratón PS/2 | 1 |
| Cantidad de puertos VGA (D-Sub) | 1 |
| Número de puertos HDMI | 1 |
| Salidas para auriculares | 3 |
| Conexión | |
| Ethernet | Si |
| Tipo de interfaz ethernet | Gigabit Ethernet |
| Controlador LAN | Intel WGI219V |
| Wifi | No |
| CaracterÃsticas | |
| Componente para | PC |
| Factor de forma | micro ATX |
| Familia del chipset | Intel |
| Chipset | Intel H610 |
| Chip de sonido | Realtek ALC887 / Realtek ALC897 |
| Canales de salida de audio | 7.1 canales |
| Sistema operativo Windows soportado | Windows 10 x64, Windows 11 x64 |
| Ranuras de expansión | |
| PCI Express x1 (Gen 3.x) ranuras | 1 |
| Ranuras PCI Express x16 (Gen 4.x) | 1 |
| Número de ranuras M.2 (M) | 1 |
| BIOS | |
| Tipos de BIOS | UEFI |
| Peso y dimensiones | |
| Ancho | 208 mm |
| Profundidad | 236 mm |
CPU SUPPORT
Support for 2th/3th/4th Generation Intel Core. i9/ i7/ i5/ i3 processors and
Intel Pentium processors/ Intel Celeron processors in the LGA700 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY
Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 233/ 866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/6/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO
By CPU model
Supports DX2
Supports HDCP
STORAGE
Total supports x M.2 socket and 4x SATA III (6Gb/s) ports
Intel H60 Chipset
x M.2 (M Key) Socket (M2M_SB):
Supports M.2 Type 2242 /2260 /2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD
4 x SATA III Connector (6Gb/s)
LAN Realtek RTL8H
0/ 00/ 000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897
7. Channels, High Definition Audio
USB 4 x USB 3.2 (Gen) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT
Intel 2th/3th/4th Processors
x PCIe 4.0 x6 Slot
Intel H60 Chipset
x PCIe 3.0 x Slot
REAR I/O
x PS/2 Keyboard/ Mouse Port
x HDMI
x VGA Port
2 x USB 3.2 (Gen) ports
4 x USB 2.0 ports
x LAN port
3 x Audio Jack
INTERNAL I/O
4 x SATA III Connector (6Gb/s)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
x USB 3.2 (Gen) Header (each header supports 2 USB 3.2 (Gen) ports)
x 8-Pin Power Connector
x 24-Pin Power Connector
x CPU Fan Connector
x System Fan Connector
x Front Panel Header
x Front Audio Header
x Internal Stereo Speaker Header
x Clear CMOS Header
H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 9.8cm x 22.8cm ( W x L )
OS SUPPORT
Supports Windows 0 (64bit) / (64bit)
¦Biostar reserves the right to add or remove support for any OS with or without
notice.
BUNDLE SOFTWARE BullGuard
ACCESSORIES
2 x SATA Cable
x I/O Shield
x DVD Driver
x Quick Guide
x M.2 Anchor
Support for 2th/3th/4th Generation Intel Core. i9/ i7/ i5/ i3 processors and
Intel Pentium processors/ Intel Celeron processors in the LGA700 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY
Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 233/ 866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/6/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO
By CPU model
Supports DX2
Supports HDCP
STORAGE
Total supports x M.2 socket and 4x SATA III (6Gb/s) ports
Intel H60 Chipset
x M.2 (M Key) Socket (M2M_SB):
Supports M.2 Type 2242 /2260 /2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD
4 x SATA III Connector (6Gb/s)
LAN Realtek RTL8H
0/ 00/ 000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897
7. Channels, High Definition Audio
USB 4 x USB 3.2 (Gen) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT
Intel 2th/3th/4th Processors
x PCIe 4.0 x6 Slot
Intel H60 Chipset
x PCIe 3.0 x Slot
REAR I/O
x PS/2 Keyboard/ Mouse Port
x HDMI
x VGA Port
2 x USB 3.2 (Gen) ports
4 x USB 2.0 ports
x LAN port
3 x Audio Jack
INTERNAL I/O
4 x SATA III Connector (6Gb/s)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
x USB 3.2 (Gen) Header (each header supports 2 USB 3.2 (Gen) ports)
x 8-Pin Power Connector
x 24-Pin Power Connector
x CPU Fan Connector
x System Fan Connector
x Front Panel Header
x Front Audio Header
x Internal Stereo Speaker Header
x Clear CMOS Header
H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 9.8cm x 22.8cm ( W x L )
OS SUPPORT
Supports Windows 0 (64bit) / (64bit)
¦Biostar reserves the right to add or remove support for any OS with or without
notice.
BUNDLE SOFTWARE BullGuard
ACCESSORIES
2 x SATA Cable
x I/O Shield
x DVD Driver
x Quick Guide
x M.2 Anchor
Pb Biostar H610mhp Ver 2.0 Skt 1700 M-atx Gen
- Marca: Biostar
- Código: H610MHP 2.0
- Disponibilidad: No disponible (24/48h)
-
83.70€
Iva incluido - Sin IVA: 69.17€
